DIY Solar-Powered GPS Logger: Build Your Own Outdoor Tracker with Flexible Solar Panels

This article introduces a DIY project for a solar-powered GPS logger based on the Arduino platform. With the integration of Flexible Solar Panel products, this project demonstrates how to enhance power efficiency and outdoor adaptability, making it ideal for remote geographic data collection and tracking applications.

Why Choose Solar-Powered GPS Loggers for Outdoor Tracking?

As outdoor geographic data collection becomes increasingly important, portable and low-power GPS loggers are essential tools. However, traditional devices often face limitations in battery life and power supply. By incorporating solar power, this DIY GPS logger achieves long-term independence from conventional charging methods, making it perfect for remote environments like forests, deserts, and mountains.

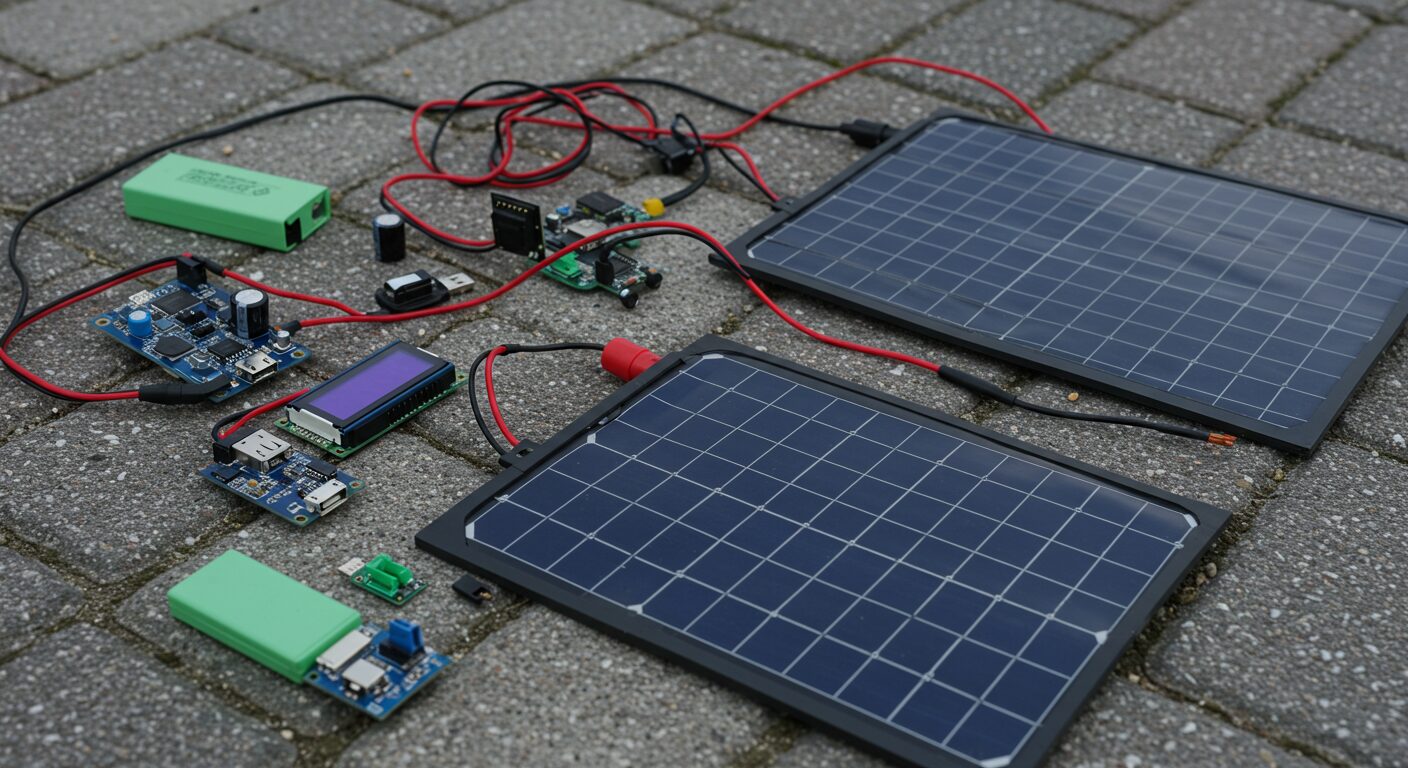

Essential Hardware for Building a DIY Solar GPS Logger

Core Components

1. Microcontroller: Arduino Nano
   • Handles data processing and control.
2. GPS Module: ublox M6N/M8N
   • Provides 5-meter positioning accuracy and supports NMEA protocol.
3. Display Module: LCD1602 (I2C interface)
   • Displays real-time latitude, longitude, time, and speed.
4. Storage Module: TF card module
   • Stores location data via SPI bus.
5. Power Module: 3.7V lithium battery + flexible solar panel
   • The flexible solar panel charges the lithium battery through a TP4056 charging management module.

Flexible Solar Panels: The Perfect Power Solution for Your DIY Project

As the supplier of Flexible Solar Panel, we recommend using our 20W flexible solar panels (approximately 300mm x 200mm) in this project. These panels offer:

• High Efficiency: Advanced technology maximizes power generation in limited space.
• Lightweight Design: Easy to install and ideal for portable devices.
• Durability: Waterproof (IP67-rated), crack-resistant, and suitable for harsh environments.
• Customizable Options: Tailored solutions for different sizes, power outputs, and interfaces to meet specific project needs.

By integrating these panels into your DIY GPS logger, you can achieve reliable power supply even in remote areas.

Step-by-Step Circuit Design for a Reliable Solar GPS Logger

1. Power Supply
   • The flexible solar panel connects to the TP4056 charging module via an MC4 connector to charge the lithium battery.
   • A rectifier diode prevents reverse current, protecting the solar panel.
   • A 2000mAh lithium battery ensures long-term operation.
2. Module Connections
   • The GPS module’s TX pin connects to the Arduino RX pin to receive location data.
   • The LCD display connects to the Arduino via an I2C interface.
   • The TF card storage module connects via SPI bus to store location data.

How to Parse GPS Data Efficiently with Arduino

The $GPRMC sentence from the NMEA protocol is parsed to extract latitude, longitude, time, and speed information:

cpp#include <TinyGPS++.h>
TinyGPSPlus gps;

void loop() {
  while (gpsSerial.available() > 0) {
    gps.encode(gpsSerial.read());
    if (gps.location.isUpdated()) {
      Serial.print("Latitude= "); Serial.println(gps.location.lat(), 6);
      Serial.print("Longitude= "); Serial.println(gps.location.lng(), 6);
    }
  }
}

Optimizing Power Consumption for Long-Term Outdoor Use

To maximize battery life and ensure efficient operation:

• Dynamically adjust GPS sampling frequency (1Hz → 0.1Hz).
• Use a light sensor to automatically adjust LCD backlight brightness.
• Implement deep sleep mode (standby current <5mA).

These optimizations reduce unnecessary power consumption while maintaining functionality.

Testing Flexible Solar Panels: Performance in Different Weather Conditions

Light Condition Adaptability Test

The flexible solar panel’s performance was tested under various weather conditions:

• Sunny: Output power close to the rated 20W.
• Cloudy: Output power at approximately 40%-60% of sunny conditions.
• Rainy: Output power at approximately 10%-20% of sunny conditions.

Durability Test

The flexible solar panel was tested for pressure resistance, waterproofing, and crack resistance:

• Waterproof performance meets IP67 standards; it can be submerged in water at a depth of 1 meter for 30 minutes without failure.
• Excellent crack resistance; no damage occurred under a bending radius of 50mm.

Practical Applications of Solar-Powered GPS Loggers

With its modular design and reliable solar power system, this DIY GPS logger is suitable for various applications:

• Outdoor Geographic Data Collection: Ideal for use in forests, deserts, or mountains where conventional charging is unavailable.
• Vehicle or Drone Tracking: Lightweight design allows easy integration into vehicles or drones without adding significant weight or bulk.
• Disaster Monitoring and Rescue Operations: Provides real-time location tracking during emergencies such as earthquakes or floods.

Future Improvements to Enhance Your DIY Solar GPS Logger

1. Hardware Upgrades
   • Add TP4056 overcharge/discharge protection to prevent battery damage.
   • Use higher-capacity lithium batteries (e.g., 5000mAh) for extended operation.
2. Software Enhancements
   • Add NMEA checksum verification for improved data reliability.
   • Implement FAT32 file system support for better management of large storage capacities.
3. Structural Protection
   • Add a waterproof enclosure and adjustable mounting brackets for better outdoor performance.
   • Provide quick-connect interfaces for easy deployment.

Conclusion: Harness the Power of Flexible Solar Panels for Your DIY Projects

As a supplier of high-efficiency flexible solar panels, we are proud to contribute to this project by providing reliable and durable solar solutions. This solar-powered GPS logger is not only suitable for outdoor geographic data collection but also has broad applications in vehicle tracking, drone navigation, disaster monitoring, and more. Its modular design and efficient power supply system offer valuable insights for future commercial applications.

If you’re interested in our flexible solar panels or need customized solutions tailored to your projects, feel free to contact us—we’re here to provide professional support!
